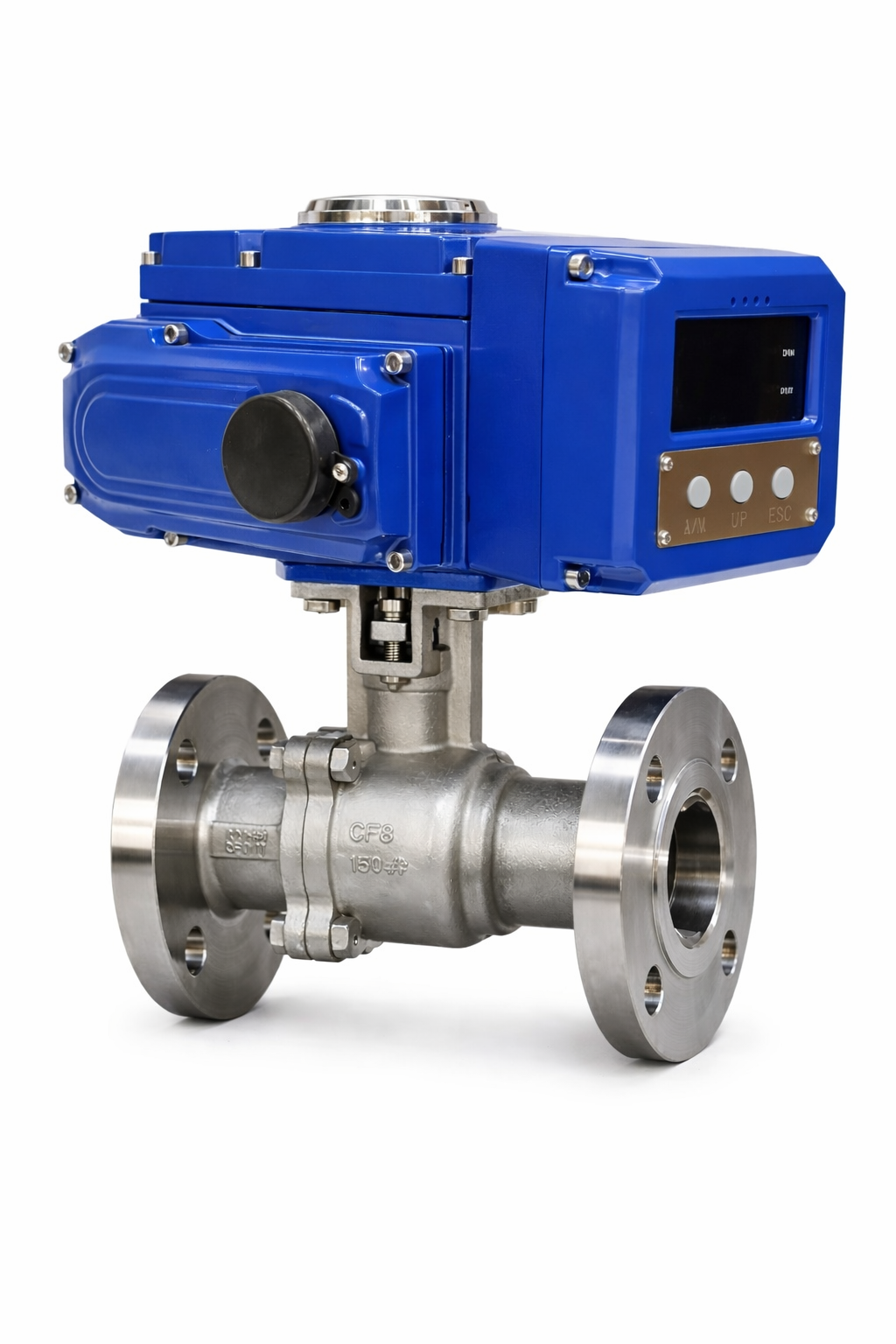

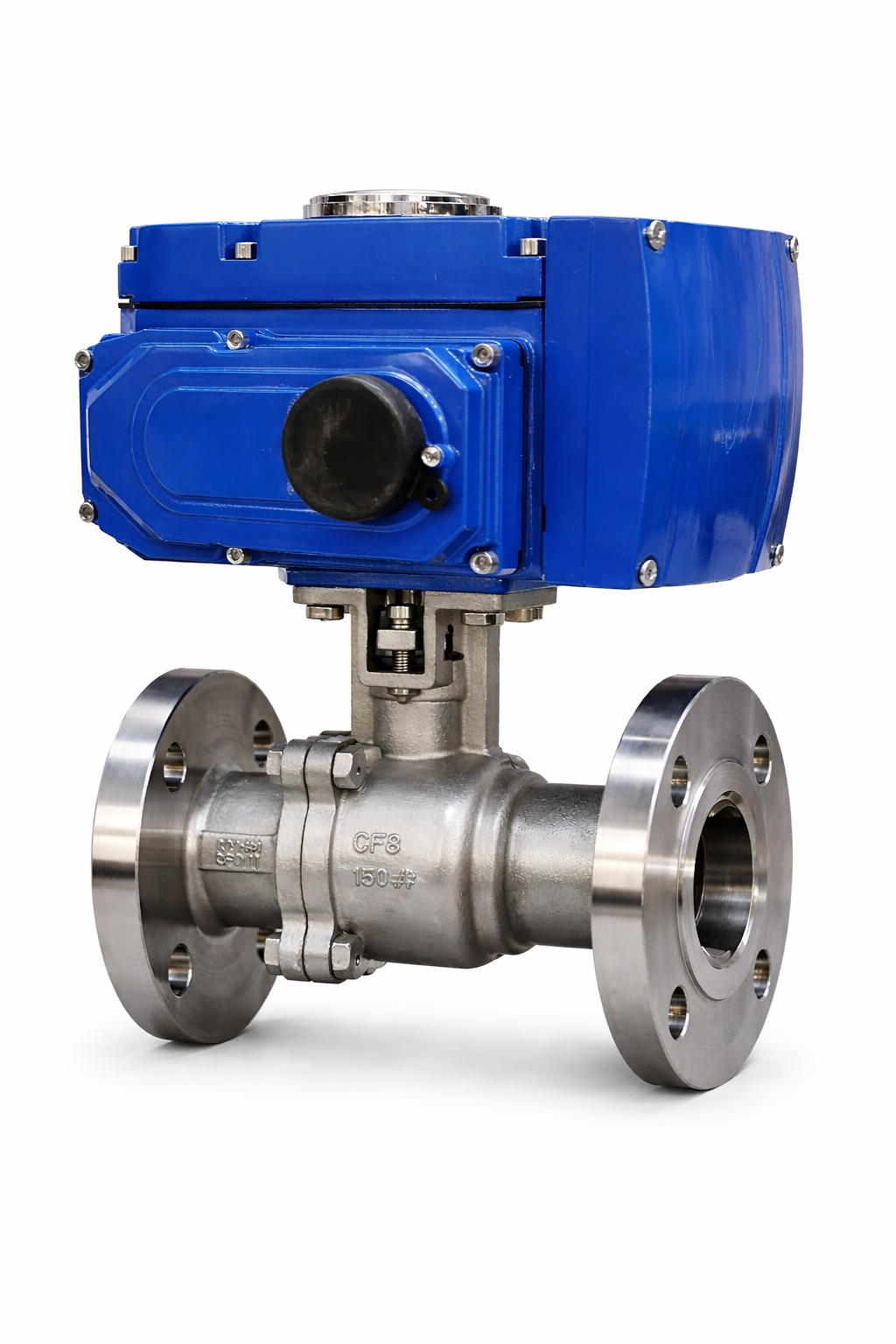

ELECTRICAL ACTUATOR OPERATED “2 PEICE DESIGN” 2 WAY BALL VALVE FLANGED END
“aline” Make Electrical Actuator Operated 2 Piece Design 2 Way Ball Valve – Flanged End is designed for fully automated flow control and shut-off in industrial process pipelines. This valve combines a high-performance electric quarter-turn actuator with a heavy-duty 2-piece full bore ball valve, delivering reliable operation, leak-tight sealing, and long service life in demanding industrial environments.
The 2-piece ball valve construction offers a compact, robust, and cost-effective solution for automation while maintaining excellent strength and durability. The flanged end connection ensures secure installation, easy alignment, and reliable sealing in medium and high-pressure applications. Available in ON/OFF and Modulating (4–20 mA) configurations, the valve integrates seamlessly with PLC, DCS, and SCADA systems for precise process automation.
Suitable for handling water, steam, compressed air, oil, gas, chemicals, solvents, vacuum, and other industrial process media, the ALINE Motorized Ball Valve provides dependable performance with minimal maintenance.
Product Features:
- Heavy Duty 2 Piece Full Port Ball Valve
- High Performance Electric Quarter Turn Actuator
- Flanged End Construction
- Full Bore Design for Maximum Flow
- Bubble Tight Leak-Free Shut-Off
- Compact & Robust Valve Design
- ISO 5211 Direct Mounting
- IP67 Weatherproof Electric Actuator
- Available in ON/OFF & Modulating Control
- Manual Override Facility
- Low Power Consumption
- Long Service Life with Low Maintenance
Technical Specifications:
| Parameter | Details |
|---|---|
| Product Type | Electrical Actuator Operated 2 Piece Ball Valve |
| Valve Type | 2 Way Full Port Ball Valve |
| Body Design | 2 Piece Design |
| End Connection | Flanged End |
| Size Range | DN15 to DN200 (½” to 8″) |
| Operation | Electric Actuator Operated |
| Actuator Type | Quarter Turn Electric Actuator |
| Control Type | ON/OFF / Modulating (4–20 mA) |
| Supply Voltage | 24V DC / 24V AC / 110V AC / 220V AC / 415V AC |
| Enclosure Protection | IP67 Weatherproof (IP68 Optional) |
| Mounting Standard | ISO 5211 |
| Body Material | WCB / SS304 / SS316 |
| Ball Material | SS304 / SS316 |
| Stem Material | SS304 / SS316 |
| Seat Material | PTFE / RPTFE / PEEK |
| Pressure Rating | ANSI Class 150 / ANSI Class 300 |
| Temperature Range | -20°C to +220°C (Depending on Seat Material) |
| Manual Override | L & Key Type / Wheel Type |
| Port Type | Full Bore |
Available Accessories:
- Modulating Control Card (4–20 mA)
- Position Feedback Signal
- Digital Position Indicator
- Heater & Thermostat
- Mechanical Limit Switches
- Auxiliary Limit Switches
- Local Control Station
- Emergency Manual Override
- Cable Glands
- Mounting Bracket & Coupler
Applications:
- Water Treatment Plants
- Chemical Processing Industry
- Oil & Gas Industry
- Petrochemical Plants
- Pharmaceutical Industry
- Food & Beverage Processing
- Steam & Condensate Systems
- HVAC Systems
- Textile Industry
- Paper & Pulp Industry
- Fire Fighting Systems
- Power Generation Plants
- RO & DM Water Plants
- General Industrial Automation
