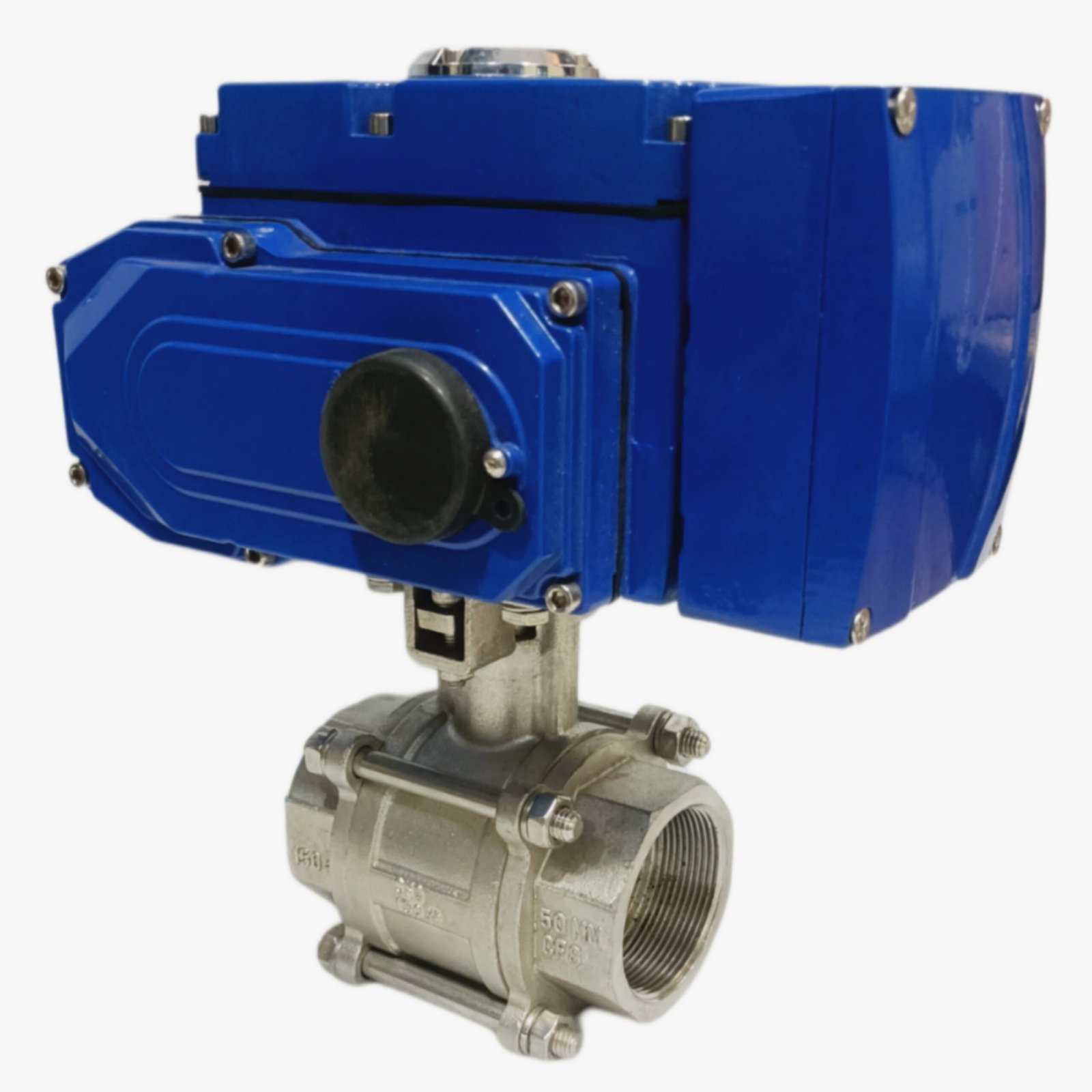

ELECTRICAL ACTUATOR OPERATED “3 PIECE DESIGN” 2 WAY BALL VALVE SCREWED END
“aline” Make Electrical Actuator Operated 3 Piece Design 2 Way Ball Valve – Screwed End is designed for fully automated on/off flow control in industrial process systems. The valve combines a high-performance electric actuator with a 3-piece full port stainless steel ball valve, offering reliable operation, excellent sealing, and long service life. Its modular 3-piece body design allows easy maintenance, seat replacement, and in-line servicing without removing the complete valve from the pipeline.
The electric actuator provides smooth quarter-turn operation with precise positioning and can be supplied in ON/OFF or Modulating (4–20 mA) configurations. The screwed end connection ensures quick installation, making this valve suitable for water, steam, compressed air, oil, gas, chemicals, vacuum, and other industrial process media.
Designed according to international standards, the ALINE Motorized Ball Valve delivers dependable performance, low maintenance, and seamless integration with PLC, DCS, and SCADA automation systems.
Product Features:
- 3 Piece Full Port Ball Valve Design
- High Performance Electric Quarter Turn Actuator
- Full Bore for Maximum Flow Capacity
- Bubble Tight Leak-Free Shut-Off
- Modular Body for Easy Maintenance
- Quarter Turn Fast Operation
- ISO 5211 Direct Mounting
- Weatherproof IP67 Electric Actuator
- Available in ON/OFF & Modulating Control
- Manual Override Facility
- Low Power Consumption
- Long Service Life with Minimal Maintenance
Technical Specifications:
| Parameter | Details |
|---|---|
| Product Type | Electrical Actuator Operated 3 Piece Ball Valve |
| Valve Type | 2 Way Full Port Ball Valve |
| Body Design | 3 Piece Design |
| End Connection | Screwed BSP / BSPT / NPT |
| Size Range | ½” to 12″ (DN15 to DN300) |
| Operation | Electric Actuator Operated |
| Actuator Type | Quarter Turn Electric Actuator |
| Control Type | ON/OFF / Modulating (4–20 mA) |
| Supply Voltage | 24V DC / 24V AC / 110V AC / 220V AC / 415V AC |
| Enclosure Protection | IP67 Weatherproof (IP68 Optional) |
| Mounting Standard | ISO 5211 |
| Body Material | SS304 / SS316 / WCB |
| Ball Material | SS304 / SS316 |
| Stem Material | SS304 / SS316 |
| Seat Material | PTFE / RPTFE / PEEK |
| Pressure Rating | PN 10 / PN 16 / 150# |
| Temperature Range | -20°C to +220°C (Depending on Seat Material) |
| Torque Range | As Per Valve Size |
| Manual Override | L & Key Type / Wheel Type |
| Port Type | Full Bore |
Available Accessories:
- Modulating Control Card (4–20 mA)
- Position Feedback Signal
- Digital Position Indicator
- Heater & Thermostat
- Mechanical Limit Switches
- Additional Auxiliary Limit Switches
- Local Control Unit
- Emergency Manual Override
- Cable Glands
- Mounting Bracket & Coupler
Applications:
- Water Treatment Plants
- Chemical Processing Industry
- Oil & Gas Industry
- Petrochemical Plants
- Pharmaceutical Industry
- Food & Beverage Processing
- Steam & Condensate Systems
- HVAC Systems
- Textile Industry
- Paper & Pulp Industry
- Fire Fighting Systems
- RO & DM Water Plants
- General Industrial Automation
