Intelligent Electric Actuators

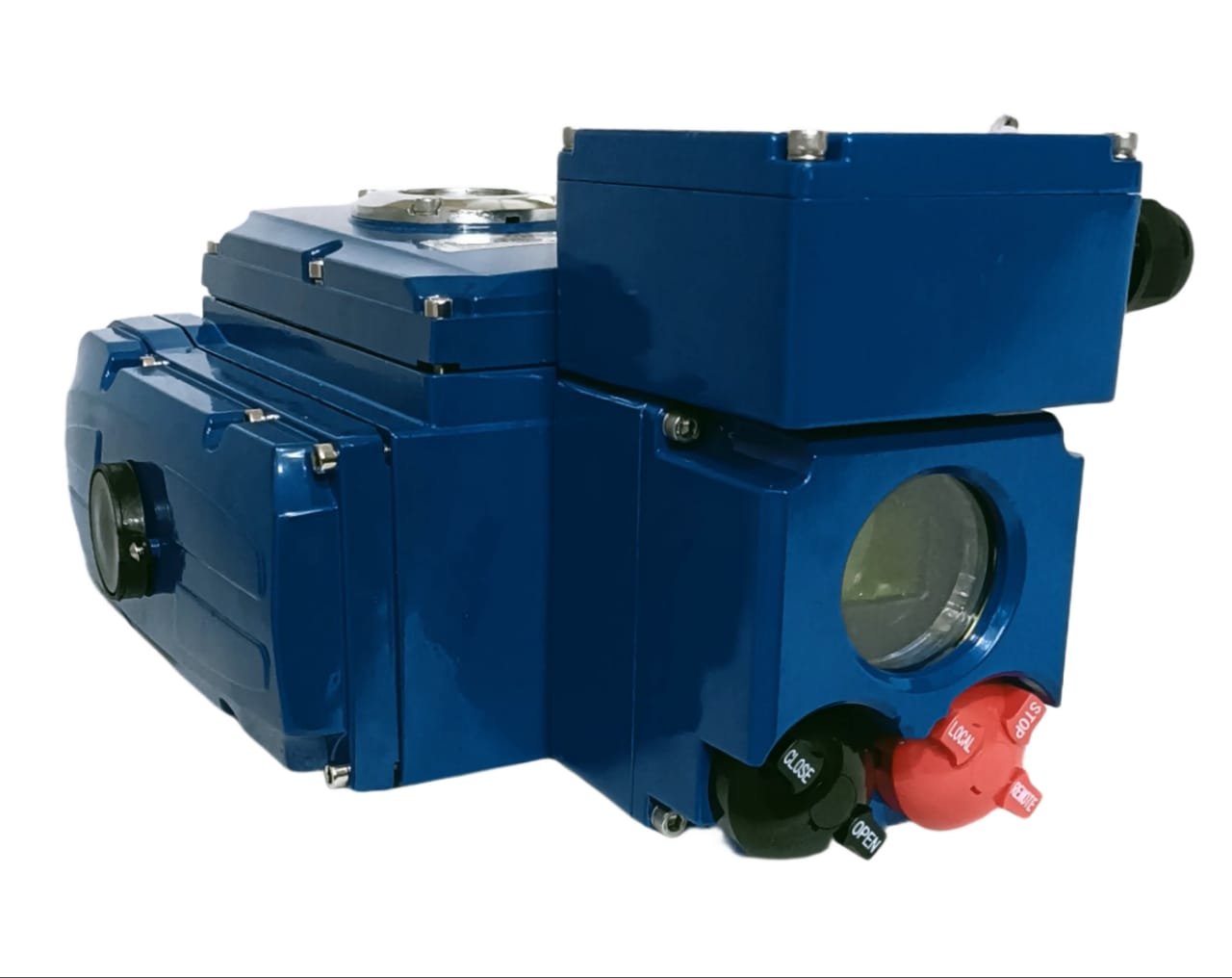

“aline” Make Weather Proof Single Phase Intelligent Type Electrical Actuator is an advanced quarter-turn actuator designed for intelligent valve automation and precise process control in modern industrial applications. Equipped with a microprocessor-based intelligent controller, LCD display, digital programming interface, and advanced diagnostics, this actuator provides accurate positioning, continuous monitoring, and reliable remote operation for ball valves, butterfly valves, plug valves, dampers, and other quarter-turn valves.
Built with a rugged IP67 weatherproof die-cast aluminium enclosure, the actuator is suitable for both indoor and outdoor installations. Powered by a single-phase AC supply, it offers ON/OFF, Modulating (4–20 mA), and intelligent communication capabilities for seamless integration with PLC, DCS, SCADA, and industrial automation systems. The intelligent control system enables easy configuration, fault diagnosis, position feedback, and high-precision valve positioning, ensuring efficient and maintenance-free operation.
ALINE Intelligent Electric Actuators are widely used in water treatment plants, chemical industries, pharmaceuticals, food & beverage processing, oil & gas, power generation, HVAC systems, marine applications, and advanced industrial automation.
Product Features:
- Intelligent Microprocessor-Based Controller
- LCD Digital Display with User-Friendly Interface
- Single Phase Quarter Turn Electric Actuator
- ON/OFF & Modulating (4–20 mA) Operation
- High Precision Valve Positioning
- Weather Proof IP67 Enclosure
- Built-in Electronic Positioner
- Digital Calibration & Self-Diagnostics
- Manual Override Facility
- Visual Position Indicator
- ISO 5211 Standard Mounting
- Corrosion Resistant Die Cast Aluminium Housing
- Low Maintenance & Long Service Life
Technical Specifications:
| Parameter | Details |
|---|---|
| Product Type | Intelligent Weather Proof Electric Actuator |
| Operation | Quarter Turn (90°) |
| Control Type | Intelligent ON/OFF & Modulating |
| Input Signal | 4–20 mA / 0–10 V DC |
| Output Feedback | 4–20 mA Position Feedback |
| Communication Protocol | Modbus RTU (Optional), RS-485 (Optional) |
| Supply Voltage | 230V AC Single Phase (±10%), 50/60 Hz |
| Optional Supply | 24V DC, 24V AC, 110V AC, 380V AC, 415V AC |
| Enclosure | IP67 Weather Proof |
| Torque Range | 30 Nm to 2000 Nm |
| Rotation Angle | 90° ± 5° |
| Manual Override | Key Type / Handwheel |
| Housing Material | Die Cast Aluminum Alloy |
| Surface Finish | Epoxy Powder Coated |
| Mounting Standard | ISO 5211 |
| Ambient Temperature | -20°C to +70°C |
Standard Features:
- Intelligent Electronic Positioning System
- LCD Display for Status & Configuration
- Automatic Calibration Function
- Self-Diagnostic & Fault Detection
- High Efficiency Electric Motor
- Precision Self-Locking Worm Gear
- Adjustable Mechanical Stops
- Built-in Torque Protection
- Adjustable Limit Switches
- Weatherproof Cable Entries
- Compact & Lightweight Design
- Smooth, Silent & Reliable Operation
Optional Accessories:
- Modbus RTU Communication
- RS-485 Communication Interface
- Bluetooth Programming (Optional)
- Wi-Fi / Remote Monitoring (Optional)
- Position Feedback Transmitter
- Auxiliary Limit Switches
- Local Control Station
- Heater & Thermostat
- Battery Backup System
- Explosion Proof Version
- Stainless Steel Fasteners
Applications:
- Ball Valve Automation
- Butterfly Valve Automation
- Plug Valve Automation
- Damper Automation
- Water Treatment Plants
- Chemical Processing Industry
- Pharmaceutical Industry
- Food & Beverage Industry
- Oil & Gas Industry
- Petrochemical Plants
- HVAC Systems
- Power Generation Plants
- Marine & Offshore
- Steel & Cement Plants
- Industrial Process Automation
