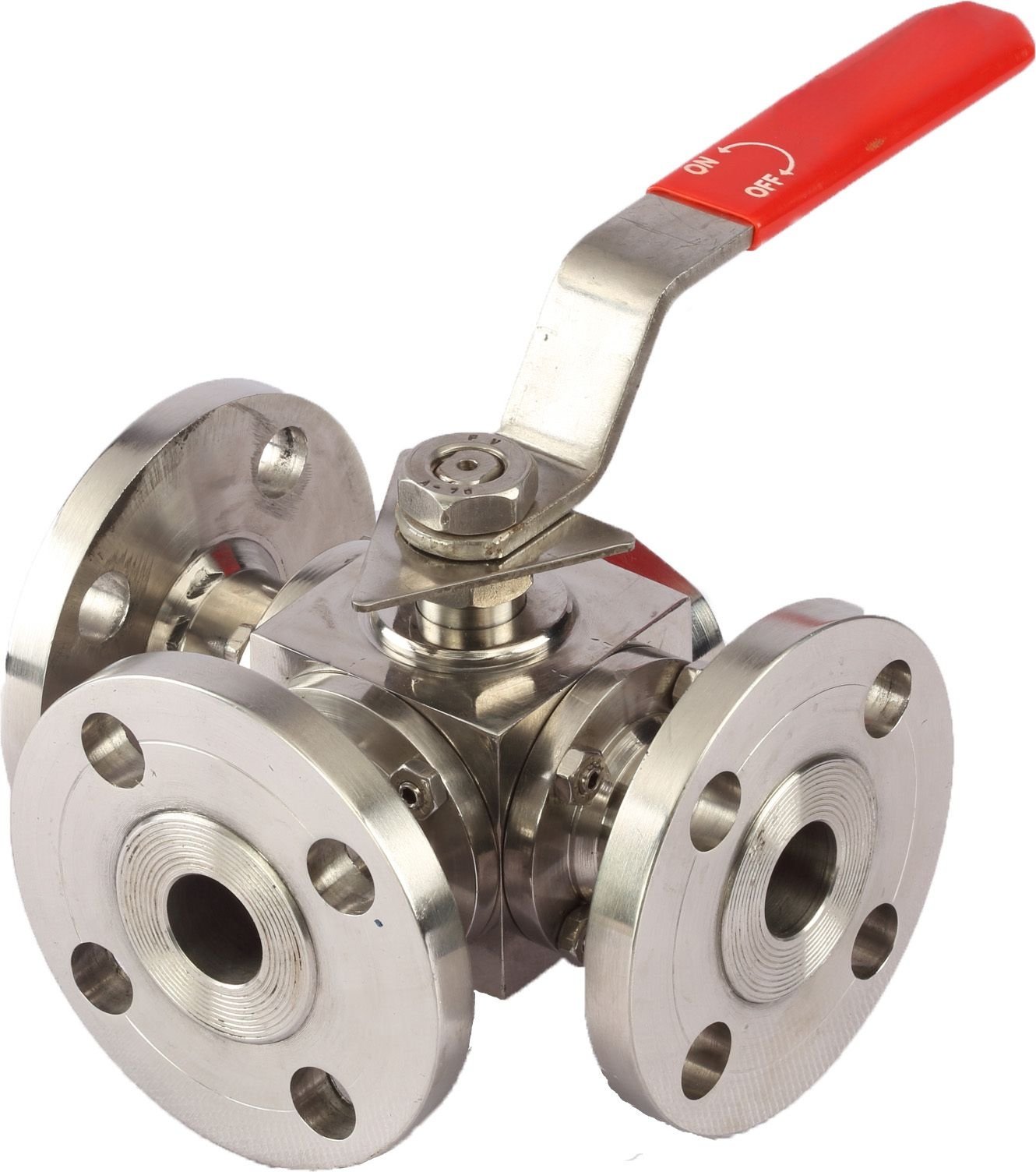

MANUAL “3 WAY” BALL VALVE FLANGED END
“aline” Make Manual 3 Way Ball Valve Flanged End is a robust and precision-engineered multi-port valve designed for flow diversion, mixing, distribution, and shut-off applications in industrial process systems. Available with L-Port and T-Port ball configurations, this valve enables efficient control of multiple flow paths using a single valve, reducing piping complexity and installation costs.
Manufactured from premium-grade materials such as SS304, SS316, WCB, Duplex Stainless Steel, and other special alloys, the valve provides outstanding corrosion resistance, high mechanical strength, and long service life. The flanged end design ensures secure, leak-free installation and is suitable for medium and high-pressure industrial applications.
Designed with a precision floating ball, blow-out proof stem, and high-performance PTFE seats, the valve offers bubble-tight shut-off, smooth quarter-turn operation, and low operating torque. It is ideal for handling liquids, gases, steam, oils, chemicals, and various industrial process media.
ALINE Manual 3 Way Ball Valves are widely used in Chemical Processing, Petrochemical, Oil & Gas, Water Treatment, Pharmaceutical, Food & Beverage, Textile, Power Plants, Paper & Pulp, HVAC Systems, and General Industrial Process Control.
Product Features:
- 3 Way Multi-Port Flow Control
- L-Port & T-Port Ball Options
- Quarter Turn Manual Lever Operation
- Heavy Duty Flanged End Construction
- Precision Floating Ball Design
- Bubble Tight Shut-Off
- Blow-Out Proof Stem
- PTFE / RPTFE / PEEK Seat Options
- Low Operating Torque
- Corrosion Resistant Construction
- Leak-Free Performance
- Easy Installation & Maintenance
Technical Specifications:
| Parameter | Details |
|---|---|
| Product Type | Manual 3 Way Ball Valve |
| Operation | Manual Lever Operated |
| Valve Design | Floating Ball |
| Ball Port | L-Port / T-Port |
| End Connection | Flanged End |
| Size Range | ½” to 8″ (DN15 to DN200) |
| Pressure Rating | Class 150 / PN16 / PN10 |
| Design Standard | ASME B16.34 / BS EN ISO 17292 |
| Face to Face Standard | ASME B16.10 |
| Flange Standard | ASME B16.5 / DIN |
| Testing Standard | API 598 / ISO 5208 |
| Body Material | CF8, CF8M, WCB, Duplex, Super Duplex |
| Ball Material | SS304 / SS316 |
| Stem Material | SS304 / SS316 |
| Seat Material | PTFE, RPTFE, PEEK |
| Temperature Range | -20°C to +220°C (Depending on Seat Material) |
Standard Features:
- Heavy Duty Investment Cast Body
- Precision Machined Ball
- L-Port & T-Port Flow Configuration
- Blow-Out Proof Stem
- PTFE Soft Seats
- Bubble Tight Shut-Off
- Full Bore Flow Design
- Anti-Static Design (Optional)
- Long Service Life
Optional Features:
- ISO 5211 Direct Mounting Pad
- Pneumatic Actuator Mounting
- Electric Actuator Mounting
- Fire Safe Design
- Anti-Static Device
- Extended Stem
- High Temperature PEEK Seats
Applications:
- Chemical Processing Plants
- Oil & Gas Industry
- Petrochemical Plants
- Water & Wastewater Treatment
- Pharmaceutical Industry
- Food & Beverage Processing
- Textile Industry
- Paper & Pulp Mills
- Power Generation Plants
- HVAC Systems
- Utility Pipelines
- Industrial Automation Systems
- Mixing & Diverting Process Lines
- General Industrial Fluid Handling
