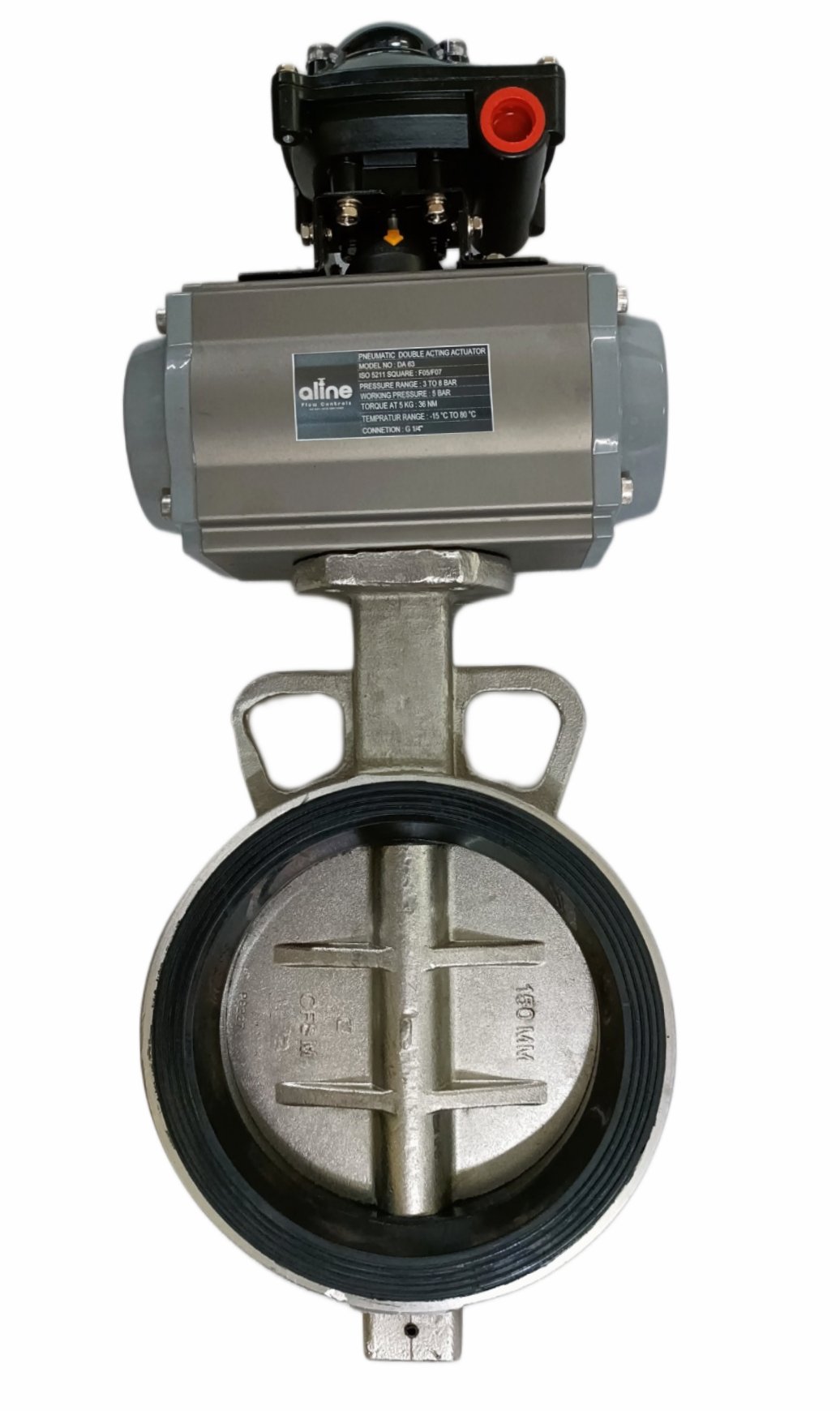

PNEUMATIC ACTUATOR OPERATED CENTRIC DISC BUTTERFLY VALVE WAFER TYPE
“aline” Make Pneumatic Actuator Operated Centric Disc Butterfly Valve – Wafer Type Class 150 is designed for reliable and efficient on/off flow control in a wide range of industrial applications. The valve features a concentric disc design with a resilient seat, ensuring bubble-tight shut-off, low operating torque, and long service life. It is integrated with a high-performance rack & pinion pneumatic actuator that provides fast, smooth, and maintenance-friendly operation.
The wafer-type body is compact, lightweight, and suitable for installation between ANSI 150# flanges, making it an ideal choice for pipelines where space and weight are important considerations. It is widely used in Water Treatment, Chemical Processing, Food & Beverage, Pharmaceutical, HVAC, Paper, Textile, Power Plants, Steel, Cement, Oil & Gas, and General Process Industries. Butterfly valves are commonly used for quick quarter-turn isolation and flow control.
Product Features:
- Compact Wafer Type Design for ANSI Class 150 Flanges
- Fast Quarter Turn Pneumatic Operation
- High Performance Rack & Pinion Pneumatic Actuator
- Bubble Tight Shut-Off with Resilient Seat
- Low Operating Torque
- Lightweight and Easy Installation
- Corrosion Resistant Construction
- Long Service Life with Minimum Maintenance
- Suitable for On/Off Automation
- ISO 5211 Direct Mounting Arrangement
- Available in Double Acting & Spring Return Actuator
Technical Specifications:
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Operated Centric Disc Butterfly Valve |
| Valve Design | Concentric Disc |
| Body Type | Wafer Type |
| Pressure Rating | ANSI Class 150# |
| Size Range | DN40 to DN600 (1½” to 24″) |
| Operation | Pneumatic Actuator Operated |
| Actuator Type | Rack & Pinion |
| Actuator Action | Double Acting / Single Acting |
| Mounting Standard | ISO 5211 |
| Body Material | Cast Iron / Ductile Iron / WCB / SS304 / SS316 |
| Disc Material | CI / DI / SS304 / SS316 |
| Seat Material | EPDM / NBR / PTFE / Viton |
| Stem Material | SS410 / SS304 / SS316 |
| End Connection | Wafer Type |
| Temperature Range | -20°C to +180°C (Depends on Seat Material) |
| Working Pressure | Up to 16 Bar |
| Air Supply Pressure | 3 – 8 Bar |
| Testing Standard | API 598 / ISO 5208 |
| Face to Face | API 609 |
| Flange Standard | ANSI B16.5 Class 150 |
Available Accessories:
- NAMUR Solenoid Valve
- Air Filter Regulator (FRL)
- Limit Switch Box
- Electro Pneumatic Positioner
- Manual Override Gear Box
- Speed Control Valve
- Quick Exhaust Valve
Applications:
- Water & Wastewater Treatment
- Chemical Processing
- Pharmaceutical Industry
- Food & Beverage Industry
- Paper & Pulp
- Textile Industry
- HVAC Systems
- Power Plants
- Steel & Cement Plants
- Oil & Gas
- Petrochemical Plants
- Marine & Offshore
- General Industrial Automation
