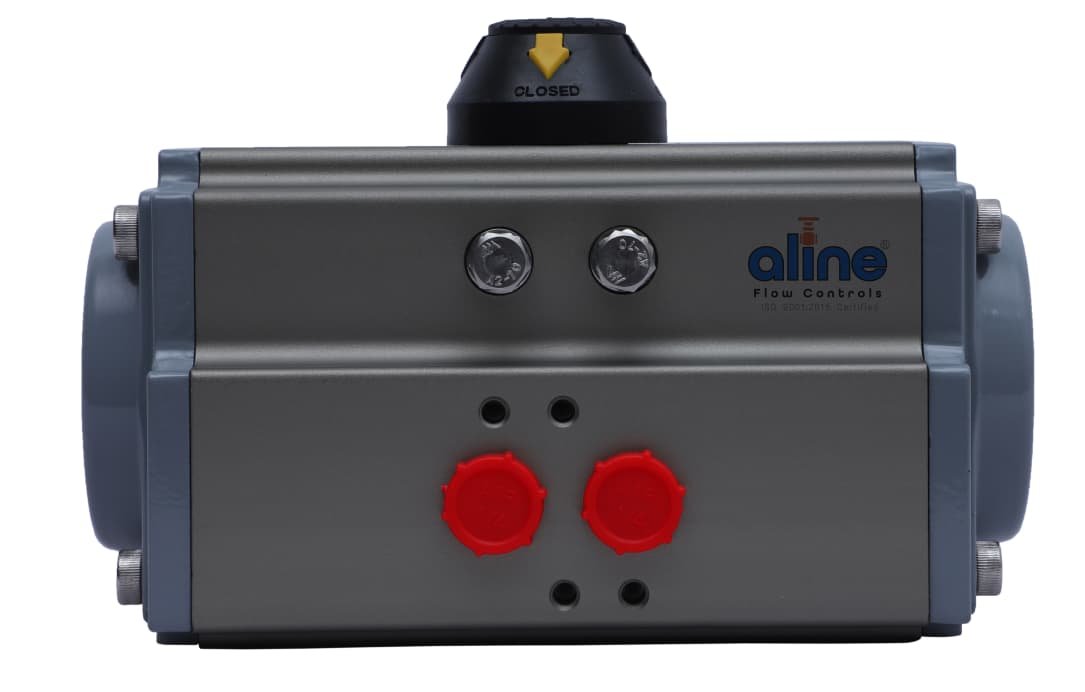

Rack And Pinion Pneumatic Actuator
“aline” Make Rack and Pinion Pneumatic Actuator is a compact, high-performance quarter-turn actuator designed for reliable automation of Ball Valves, Butterfly Valves, Plug Valves, Dampers, and other quarter-turn valves. Manufactured using hard anodized extruded aluminium, precision-machined alloy steel components, and premium sealing materials, it delivers smooth operation, high efficiency, and long service life in demanding industrial environments.
Engineered with a precision Rack & Pinion mechanism, the actuator ensures accurate torque transmission, fast response, and consistent valve operation. It is available in Double Acting and Spring Return (Fail Safe) configurations to suit a wide range of industrial automation requirements.
Designed according to ISO 5211, NAMUR, and VDI/VDE 3845 standards, the ALINE Pneumatic Actuator allows easy installation of accessories such as Solenoid Valves, Limit Switch Boxes, Positioners, Air Filter Regulators (FRL), and Manual Override Systems. Its corrosion-resistant construction makes it suitable for harsh industrial conditions including Chemical Processing, Oil & Gas, Petrochemical, Power Plants, Water Treatment, Pharmaceutical, Food Processing, Marine, and General Process Industries.
Product Features:
- Precision Rack & Pinion Mechanism
- Compact and Lightweight Design
- High Strength Hard Anodized Aluminium Body
- Double Acting & Spring Return Models Available
- High Cycle Life with Low Maintenance
- Fast Opening and Closing Operation
- Corrosion Resistant Construction
- ISO 5211 Standard Mounting
- NAMUR Interface for Solenoid Valve
- Adjustable Travel Stops (±5°)
- Long Service Life with Premium Sealing System
- Suitable for Indoor and Outdoor Applications
Technical Specifications:
| Parameter | Details |
|---|---|
| Product Type | Rack & Pinion Pneumatic Actuator |
| Operation | Double Acting / Single Return |
| Design | Rack & Pinion |
| Rotation | 90° Quarter Turn |
| Size Range | 32 MM to 400 MM |
| Body Material | Hard Anodized Extruded Aluminum |
| Shaft Material | Alloy Steel |
| Piston Material | Aluminum Pressure Die Cast |
| End Caps | Aluminum Pressure Die Cast |
| Fasteners | SS 304 |
| Seal Material | Nitrile (NBR) / Viton (Optional) |
| Mounting Standard | ISO 5211 |
| Solenoid Mounting | NAMUR Standard |
| Accessory Mounting | VDI/VDE 3845 |
| Working Pressure | 3 to 8 Bar |
| Operating Medium | Clean, Dry Compressed Air |
| Operating Temperature | -20°C to +80°C (Standard) |
Standard Features:
- Heavy Duty Aluminum Construction
- Hard Anodized Body for Corrosion Protection
- Precision Alloy Steel Drive Shaft
- Premium NBR Sealing System
- ISO 5211 Valve Mounting
- NAMUR Solenoid Interface
- Adjustable Mechanical Travel Stops
- High Output Torque
- Smooth and Reliable Valve Operation
- Low Air Consumption
- Long Maintenance-Free Service Life
Optional Accessories:
- NAMUR Solenoid Valve (3/2 & 5/2 Way)
- Air Filter Regulator (FRL Unit)
- Limit Switch Box
- Electro Pneumatic Positioner
- Smart Digital Positioner
- Quick Exhaust Valve
- Air Lock Valve
- Manual Override
- Stainless Steel Fasteners
- High Temperature Seal Kit (Viton)
Applications:
- Ball Valve Automation
- Butterfly Valve Automation
- Plug Valve Automation
- Damper Automation
- Chemical Processing Plants
- Oil & Gas Industry
- Petrochemical Plants
- Water & Wastewater Treatment
- Pharmaceutical Industry
- Food & Beverage Processing
- Power Plants
- Marine & Offshore
- Steel & Cement Industries
- Paper & Pulp Industry
- General Industrial Automation
